Product description

The lighting lighthouse is a mobile high-performance large-scale lighting equipment specially developed by our company to meet the needs of night construction, emergency response, and disaster relief. It is equipped with a generator set and an external current input interface, as well as an advanced high-performance trailer chassis, suitable for towing various types of vehicles, and has superior off-road performance. The fully galvanized lamp post and the specially treated outer cover and anti leakage structure are suitable for all-weather use.

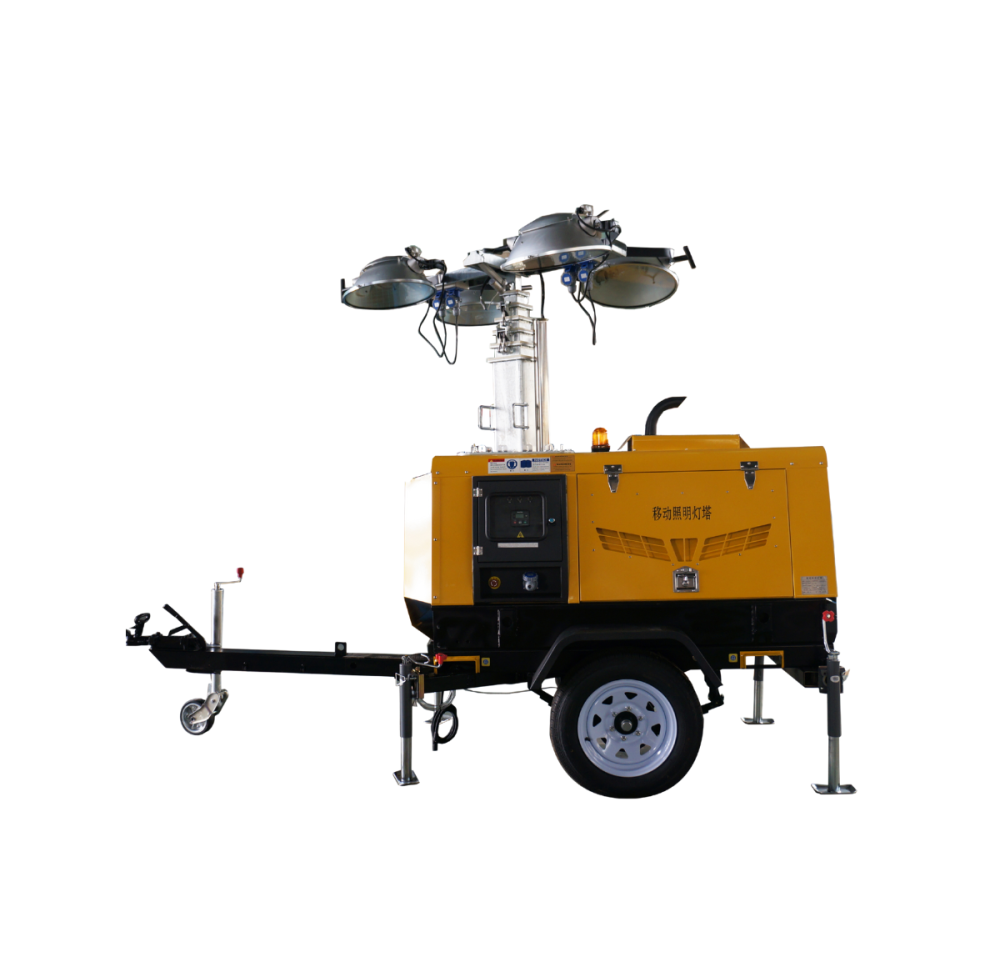

The 4YKS4000 is our company's latest vertically adjustable light pole lighting lighthouse, which is easy to operate and maintain, and its smaller size makes transportation more convenient. It has the following characteristics:

1. A safe and reliable hydraulic driven 7-section telescopic rod can be raised up to 9m;

2. The lighting angle can be adjusted from vertical to horizontal by operating the control panel;

3. Manually operate the lamp post to rotate freely within the range of 359 ° to adjust the illumination range;

4. The lighting appliances are placed inside the outer cover for easy maintenance, and the cables are stored in protective cable conduits;

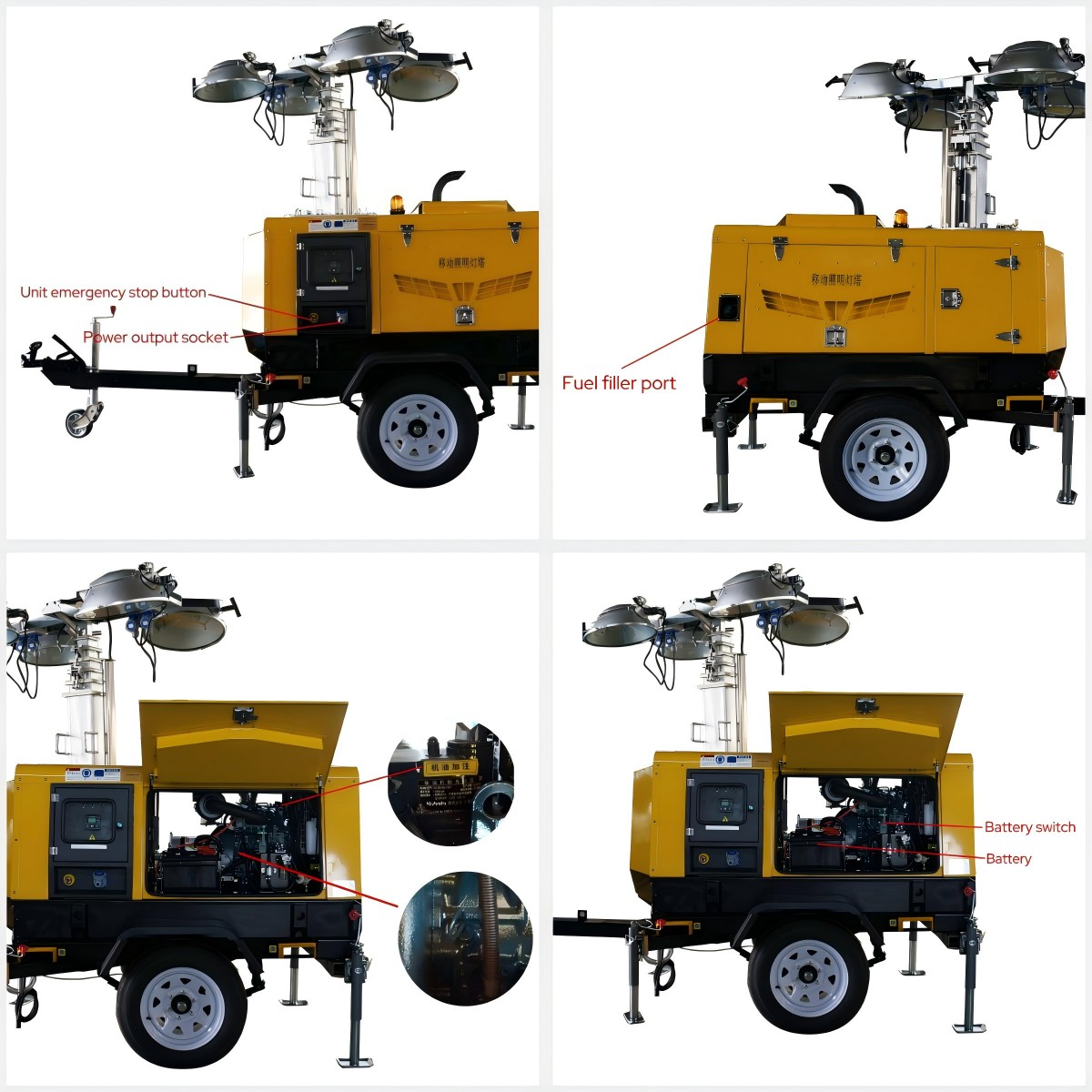

5. Equipped with high-quality, low emission brushless, multi fault protected diesel generator sets, which can provide stable and reliable power for lighting;

6. Adopting advanced independent suspension system, capable of withstanding high-intensity impacts, with a service life of over 20 years for the axles, maintenance free;

7. Inertial braking system can greatly reduce collisions with the towing vehicle during braking;

8. Four individually adjustable manual support legs, which can provide stable support even on uneven ground and can be used normally in environments with strong winds up to level 9;

9. The double-layer fuel tank is installed to prevent damage from foreign objects during transportation and effectively reduce the probability of abnormal leakage.

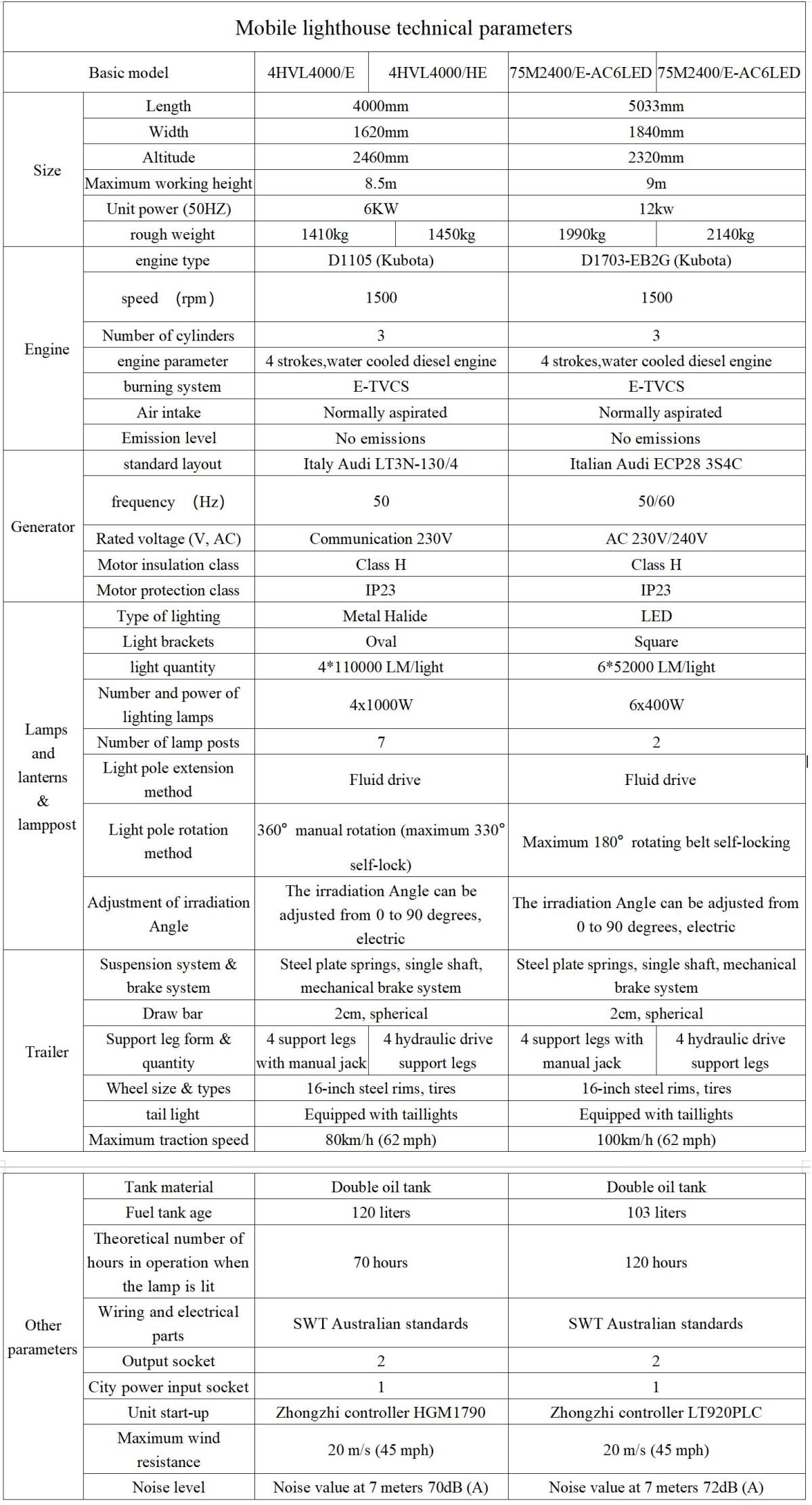

Product Parameters
